Dial-Up Networking Setup for Windows ME

Create a New Dial-Up Networking Connection using Windows ME

• On your desktop, double click the My Computer Icon

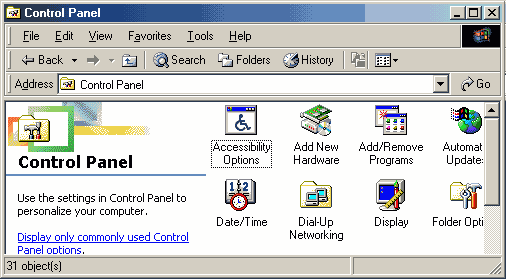

• Double Click the Control Panel icon

• Double-Click the Dial-Up Networking icon

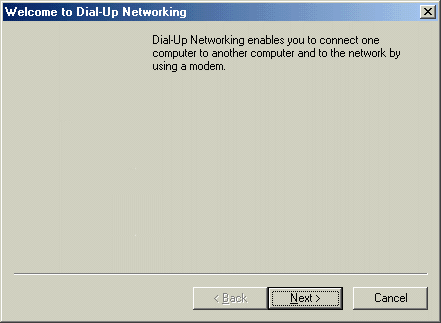

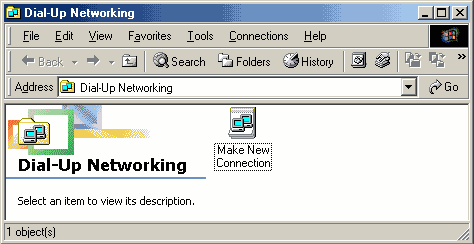

• Double-Click the Make New Connection icon.

• Click the Next button

• Type in a name for the internet connection (i.e. AOS)
• Then select your modem name from the drop down menu
• Click the Next button

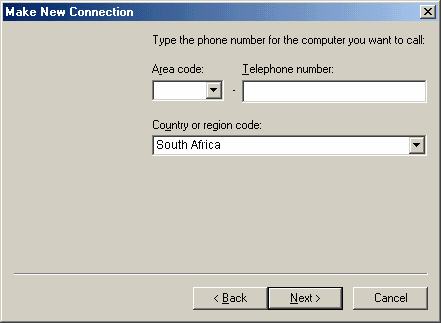

• Type in the Local Access number (leave area code blank and just enter the telephone number) that you will be using to connect to AOS
• Click the Next button

• You have now created your Dial-Up Networking connection.
• Click the Finish button

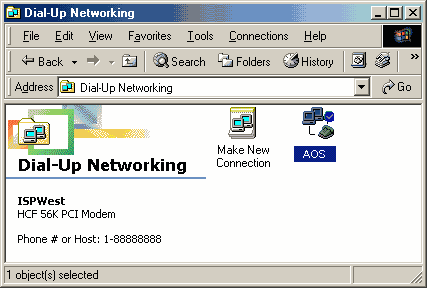

• In the Dial-Up Networking window, right click on the AOS Dial-Up icon
• Click Properties

• Under the Networking Tab
• Under Advanced Options, make sure the �Enable software compression� is checked, and that �Record a log file for this connection� is not checked.
• Under Allowed network protocols, make sure that �NetBEUI� and �IPX/SPX Compatible� are not checked, and that �TCP/IP� is checked
• Then click on the TCP/IP Settings button

• In the TCP/IP Settings window, make sure �Server assigned IP address�, and �Server assigned name server addresses� are selected
• Also, make sure that both �Use IP header compression� and �Use default gateway on remote network� are checked
• Click the OK button

• To create a shortcut on your desktop, right click on the AOS icon and click Create Shortcut
• Now, in the Dial-Up Networking window, double click on the AOS icon to connect to the internet

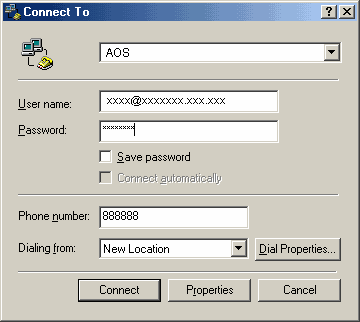

• Enter your username.
• Then type in your password

• Click the Connect button to log on to the internet
